Jaw Crusher - Model II

PULVERISETTE 1

classic line

Numero di ordinazione
01.7030.00
Accessori

Please note: The crushing jaws and lateral support walls of the FRITSCH Jaw Crusher PULVERISETTE 1 classic line are available in 6 different materials in order to avoid undesired contamination due to material abrasion. The standard version is equipped with fixed and movable crushing jaws as well as lateral support walls made of hardened steel.

If required, we can equip your PULVERISETTE 1 classic line, model II, with fixed and movable crushing jaws in steel with a grooved surface, which have a different influence on particle shape and particle size distribution.

Normally, crushing jaws and support walls of the same material are used. Since the lateral support walls are subject to low stresses, however, the standard lateral support walls made of hardened steel can often be retained.

FIXED AND MOVABLE CRUSHING JAWS AND LATERAL SUPPORT WALLS

Aiuto per la selezione

  • Material data for crushing jaws and support walls

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Hardened steel Fe – Cr 7.9 Good Brittle, hard samples
    Stainless steel Fe – Cr - Ni 8 Fairly good Medium-hard, brittle samples
    Chromium-free tool steel Fe 7.8 Good Medium-hard samples, RoHS samples
    Manganese steel Fe - Mn 7.9-8 Good Hard, brittle samples
    Hardmetal tungsten carbide WC 14.05 Very good Very hard, abrasive samples
    Zirconium oxide ZrO2 5.7 Good Medium-hard, brittle samples, metal-free grinding
    Aluminium Al 2.7 Fairly good Brittle samples

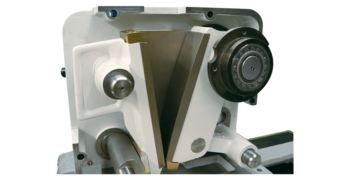

Crushing jaws for Fritsch Jaw Crusher for comminution of samples

Normally, crushing jaws and support walls of the same material are used.
For the comminution of RoHS samples – such as for the XRF analysis – crushing jaws and support walls made of chromium-free steel are particularly well suited.
For completely iron-free pre-crushing of medium-hard brittle samples, for example in the ceramics industry, we can equip your FRITSCH Jaw Crusher PULVERISETTE 1 classic line with crushing jaws made of zirconium oxide, lateral support walls in zirconium oxide or aluminium, and with a special PVC funnel. So you will have absolute protection against iron contamination, such as for dental ceramics.

SELECT CRUSHING JAWS AND SUPPORT WALLS

FIXED AND MOVABLE CRUSHING JAWS

fixed crushing jaw, hardened steel
N. 43.3010.09

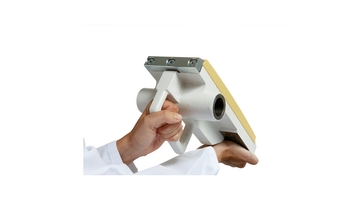

Fixed crushing jaw, hardened steel

for the comminution of brittle, very hard samples


General material specification:
Material: hardened steel - 1.2436
Abrasion resistance: good
suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis.


Crushing jaws made of hardened steel belong to the standard equipment of the FRITSCH Jaw Crushers and therefore they are included in the instrument price.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialHardened steel - 1.2379
ISO/EN/DIN codeX153CrMoV12
Chemical composition
ElementShare %
Iron – Feapprox. 83.4
Carbon – C1.55 – 2.10
Molybdenum – M ≤ 0.8
Vanadium– V ≤ 0.9
Chromium – Cr12
Tungsten– W ≤ 0.8
Physical and mechanical properties
Density7.7 g/cm³
Hardness60 + 3 HRC


Explanations on hardness data
movable crushing jaw, hardened steel
N. 43.3020.09
Movable crushing jaw, hardened steel

for the comminution of brittle, hard samples


General material specification:
Material: hardened steel - 1.2436
Abrasion resistance: good
suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis.


Crushing jaws made of hardened steel belong to the standard equipment of the FRITSCH Jaw Crushers and therefore they are included in the instrument price.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialHardened steel - 1.2379
ISO/EN/DIN codeX153CrMoV12
Chemical composition
ElementShare %
Iron – Feapprox. 83.4
Carbon – C1.55 – 2.10
Molybdenum – M ≤ 0.8
Vanadium– V ≤ 0.9
Chromium – Cr12
Tungsten– W ≤ 0.8
Physical and mechanical properties
Density7.7 g/cm³
Hardness60 + 3 HRC


Explanations on hardness data
fixed crushing jaw, stainless steel
N. 43.3030.10
Fixed crushing jaw, stainless steel

for the comminution of medium-hard, brittle samples


General material specification:
Material: stainless steel - 1.4571
Abrasion resistance: fairly good
Suitable for: medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialStainless steel – 1.4571
ISO/EN/DIN codeX6CrNIMo Ti17-12-2
Chemical composition
ElementShare %
Iron – Fe63
Carbon – Cmax. 0.08
Silicon – Simax. 1.0
Manganese – Mnmax. 2.0
Phosphorus – Pmax. 0.045
Sulphur – S0.030
Chromium – Cr16.5 – 18.5
Molybdenum – Mo2.00 – 2.50
Nickel – Ni10.5 – 13.5
Titan – Ti 5 x C≤ 0.70
Physical and mechanical properties
Density8 g/cm³
Hardness95 HB


Explanations on hardness data
movable crushing jaw, stainless steel
N. 43.3040.10
Movable crushing jaw, stainless steel

for the comminution of medium-hard, brittle samples


General material specification:
Material: stainless steel - 1.4571
Abrasion resistance: fairly good
Suitable for: medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialStainless steel – 1.4571
ISO/EN/DIN codeX6CrNIMo Ti17-12-2
Chemical composition
ElementShare %
Iron – Fe63
Carbon – Cmax. 0.08
Silicon – Simax. 1.0
Manganese – Mnmax. 2.0
Phosphorus – Pmax. 0.045
Sulphur – S0.030
Chromium – Cr16.5 – 18.5
Molybdenum – Mo2.00 – 2.50
Nickel – Ni10.5 – 13.5
Titan – Ti 5 x C≤ 0.70
Physical and mechanical properties
Density8 g/cm³
Hardness95 HB


Explanations on hardness data
fixed crushing jaw, chromium-free tool steel
N. 43.3011.09
Fixed crushing jaw chromium-free tool steel

for the comminution of medium-hard samples


General material specifications:
Material: chromium-free tool steel  – 1.1740
Abrasion resistance: good
Suitable for: medium-hard samples
Detailed information about the material you will find in the element analysis.


For the comminution of RoHS samples – such as for the XRF analysis – crushing jaws and support walls made of chromium-free tool steel are particularly well suited.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P0.035
Sulphur – S0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness52 - 58 HRC


Explanations on hardness data
movable crushing jaw, chromium-free tool steel
N. 43.3021.09
movable crushing jaw chromium-free tool steel

for the comminution of medium-hard samples


General material specifications:
Material: chromium-free tool steel – 1.1740
Abrasion resistance: good
Suitable for: medium-hard samples
Detailed information about the material you will find in the element analysis.


For the comminution of RoHS samples – such as for the XRF analysis – crushing jaws and support walls made of chromium-free tool steel are particularly well suited.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P0.035
Sulphur – S0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness52 - 58 HRC


Explanations on hardness data
fixed crushing jaw, manganese steel
N. 43.3130.23
Fixed crushing jaw, manganese steel

for the comminution of hard, brittle samples


General material specifications:
Material: manganese steel - 1.3401
Abrasion resistance: good
Suitable for: hard, brittle samples
Detailed information about the material you will find in the element analysis.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialManganese steel – 1.3401
ISO/EN/DIN codeX120Mn12
Chemical composition
ElementShare %
Iron – Fe83.56 -85.96
Chromium – Cr < 1,50
Silicon – Si0,3–0,5
Manganese – Mn12,0–13.0
Carbon – C1.1 -1.3
Phosphorus – P< 0.1
Sulphur – S< 0.04
Physical and mechanical properties
Density7.9–8 g/cm³
Hardness27–32 HRC


Explanations on hardness data
movable crushing jaw, manganese steel
N. 43.3140.23
Movable crushing jaw, manganese steel

for the comminution of hard, brittle samples


General material specifications:
Material: manganese steel - 1.3401
Abrasion resistance: good
Suitable for: hard, brittle samples
Detailed information about the material you will find in the element analysis.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialManganese steel – 1.3401
ISO/EN/DIN codeX120Mn12
Chemical composition
ElementShare %
Iron – Fe83.56 -85.96
Chromium – Cr < 1,50
Silicon – Si0,3–0,5
Manganese – Mn12,0–13.0
Carbon – C1.1 -1.3
Phosphorus – P< 0.1
Sulphur – S< 0.04
Physical and mechanical properties
Density7.9–8 g/cm³
Hardness27–32 HRC


Explanations on hardness data
fixed crushing jaw, hardmetal tungsten carbide
N. 43.3050.08
Fixed crushing jaw, hardmetal tungsten carbide

for the comminution of hard, abrasive samples


General material specifications:
Material: Hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: very hard, abrasive samples
Detailed information about the material you will find in the element analysis.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC85.00
Cobalt – Co15.00
Physical and mechanical properties
Density14.05 g/cm³
Hardness1020 HV10


Explanations on hardness data
movable crushing jaw, hardmetal tungsten carbide
N. 43.3060.08
Movable crushing jaw, hardmetal tungsten carbide

for the comminution of very hard, abrasive samples


General material specifications:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for very hard, abrasive samples
Detailed information about the material you will find in the element analysis.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC85.00
Cobalt – Co15.00
Physical and mechanical properties
Density14.05 g/cm³
Hardness1020 HV10


Explanations on hardness data
fixed crushing jaw, zirconium oxide
N. 43.3100.27
Fixed crushing jaw, zirconium oxide

for the comminution of medium-hard, brittle samples and metal-free crushing


General material specifications:
Material: zirconium oxide - ZrO2
Abrasion resistance: good
Suitable for: medium-hard, brittle samples, metal-free crushing
Detailed information about the material you will find in the element analysis.


Metal-free pre-crushing
For absolute protection against metal contamination, such as for dental ceramics. Crushing jaws made of zirconium oxide are perfect for completely metal-free pre-crushing of medium-hard brittle samples, for example in the ceramics industry, we can equip your FRITSCH Jaw Crusher PULVERISETTE 1 premium line and classic line with lateral support walls made of:


aluminium:
order no. 43.4040.13 – model premium line
order no. 43.3150.13 – model classic line


zirconium oxide:
order no. 43.4050.27 – model premium line
order no. 43.3160.27 – model classic line


polyamide:
order no. 43.4045.16 – model premium line


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
movable crushing jaw, zirconium oxide
N. 43.3110.27
Movable crushing jaw, zirconium oxide

for the comminution of medium-hard, brittle samples and metal-free grinding


General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: good
Suitable for: abrasive, medium-hard, brittle samples, metal-free crushing
Detailed information about the material you will find in the element analysis.


Metal-free pre-crushing
For absolute protection against metal contamination, such as for dental ceramics. Crushing jaws made of zirconium oxide are perfect for completely metal-free pre-crushing of medium-hard brittle samples, for example in the ceramics industry, we can equip your FRITSCH Jaw Crusher PULVERISETTE 1 premium line and classic line with lateral support walls made of:


aluminium:
order no. 43.4040.13 – model premium line
order no. 43.3150.13 – model classic line


zirconium oxide:
order no. 43.4050.27 – model premium line
order no. 43.3160.27 – model classic line


polyamide:
order no. 43.4045.16 – model premium line


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data

LATERAL SUPPORT WALLS

pair of lateral support walls, hardened steel
N. 43.3070.09
Pair of lateral support walls, hardened steel

Lateral support walls made of hardened tool steel belong to the standard equipment of the FRITSCH Jaw Crushers and therefore they are included in the instrument price.

General material specifications:
Material: hardened steel - 1.2436
Abrasion resistance: good
Suitable for:  brittle, hard samples
Detailed information about the material you will find in the element analysis.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialHardened steel - 1.2379
ISO/EN/DIN codeX153CrMoV12
Chemical composition
ElementShare %
Iron – Feapprox. 83.4
Carbon – C1.55 – 2.10
Molybdenum – M ≤ 0.8
Vanadium– V ≤ 0.9
Chromium – Cr12
Tungsten– W ≤ 0.8
Physical and mechanical properties
Density7.7 g/cm³
Hardness60 + 3 HRC


Explanations on hardness data
pair of lateral support walls, stainless steel
N. 43.3080.10
Pair of lateral support walls, stainless steel

General material specification:
Material: stainless steel - 1.4571
Abrasion resistance: fairly good
Suitable for: medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialStainless steel – 1.4571
ISO/EN/DIN codeX6CrNIMo Ti17-12-2
Chemical composition
ElementShare %
Iron – Fe63
Carbon – Cmax. 0.08
Silicon – Simax. 1.0
Manganese – Mnmax. 2.0
Phosphorus – Pmax. 0.045
Sulphur – S0.030
Chromium – Cr16.5 – 18.5
Molybdenum – Mo2.00 – 2.50
Nickel – Ni10.5 – 13.5
Titan – Ti 5 x C≤ 0.70
Physical and mechanical properties
Density8 g/cm³
Hardness95 HB


Explanations on hardness data
pair of lateral support walls, chromium-free tool steel
N. 43.3071.09
pair of lateral support walls, chromium-free tool steel

General material specifications:
Material: chromium-free tool steel  - 1.1740
Abrasion resistance: good
Suitable for: medium-hard samples
Detailed information about the material you will find in the element analysis.


For the comminution of RoHS samples – such as for the XRF analysis – crushing jaws and support walls made of chromium-free tool steel are particularly well suited.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P0.035
Sulphur – S0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness52 - 58 HRC


Explanations on hardness data
pair of lateral support walls, hardmetal tungsten carbide
N. 43.3090.08
Pair of lateral support walls, hardmetal tungsten carbide

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: very hard, abrasive samples
Detailed information about the material you will find in the element analysis.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC85.00
Cobalt – Co15.00
Physical and mechanical properties
Density14.05 g/cm³
Hardness1020 HV10


Explanations on hardness data
pair of lateral support walls, aluminium
N. 43.3150.13
pair of lateral support walls, aluminium

General material specifications:
Material: aluminium - 3.4365
Abrasion resistance: fairly good
Suitable for: medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.


Metal-free pre-crushing
Crushing jaws made of zirconium oxide are perfect for completely metal-free pre-crushing of medium-hard brittle samples, for example in the ceramics industry, we can equip your FRITSCH Jaw Crusher PULVERISETTE 1 classic line with fixed crushing jaws (order no. 43.3100.27) or movable crushing jaws (order no. 43.3110.27) in zirconium oxide and with a special PVC funnel (order no. 01.7410.00). For absolute protection against metal contamination, such as for dental ceramics.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialAluminium AlZnMgCu1,5
ISO/EN/DIN Code3.4365
Chemical composition
ElementShare %
Iron – Fe0.50
Silicon – Si0.40
Copper – Cu1.20 - 2.0
Manganese – Mn0.30
Magnesium – Mg2.1 - 2.9
Chromium – Cr0.18 - 0.28
Zinc – ZN5.1 - 6.1
Titan – Ti0.20
Physical and mechanical properties
Density2,7 g/cm³
Hardness2,75 Mohs


Explanations on hardness data
pair of lateral support walls, zirconium oxide
N. 43.3160.27
pair of lateral support walls, zirconium oxide

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: good
Suitable for: medium-hard, brittle samples, metal-free crushing
Detailed information about the material you will find in the element analysis.


Metal-free pre-crushing
Crushing jaws made of zirconium oxide are perfect for completely metal-free pre-crushing of medium-hard brittle samples, for example in the ceramics industry, we can equip your FRITSCH Jaw Crusher PULVERISETTE 1 classic line with fixed crushing jaws (order no. 43.3100.27) or movable crushing jaws (order no. 43.3110.27) in zirconium oxide or aluminium lateral suport walls (order no. 43.3150.13), and with a special PVC funnel (order no. 01.5410.00). For absolute protection against metal contamination, such as for dental ceramics.


Lateral support walls of zirconium oxide are only suitable for crushing ceramic materials, minerals etc. and never for hard-tough samples such as metals.


ANALISI DELLA COMPOSIZIONE CHIMICA
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data

ACCESSORIES FOR METAL-FREE PRE-CRUSHING

Use the PVC funnel and the included clamping strips for metal-free pre-crushing of brittle samples. So you will have absolute protection against metal contamination for example for example in the ceramics industry – dental ceramics.

SELECT ACCESSORIES FOR METAL-FREE PRE-CRUSHING

PVC FUNNEL INCL. CLAMPING STRIPS

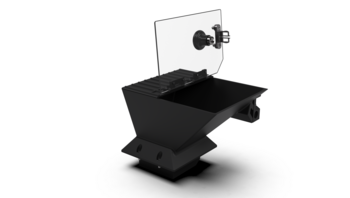

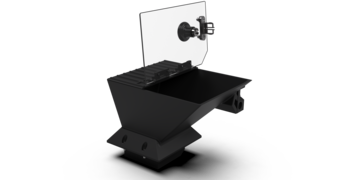

PVC Funnel incl. clamping strips
N. 01.7410.00
PVC Funnel incl. clamping strips

Use the PVC funnel and the included clamping strips for metal-free pre-crushing of brittle samples. So you will have absolute protection against metal contamination for example for example in the ceramics industry – dental ceramics.


For this you will need additionally fixed and movable crushing jaws made of zirconium oxideand lateral support walls made of zirconium oxide*.


fixed crushing jaw
zirconium oxide*- order no. - 43.3100.27


movable crushing jaw
zirconium oxide* - order no. -  43.3110.27



lateral support walls
zirconium oxide*- order no. -  43.3160.27


*Please note: Crushing jaws and lateral support walls made of zirconium oxide* are only suitable for crushing ceramic materials, minerals etc. and never for hard-tough samples such as metals.


DUST EXHAUST SYSTEM

An integrated connection makes it very simple to combine the instrument with a dust exhaust system for automatic removal of the fine dust arising during grinding. The dust exhaust system is also very useful when cleaning the grinding parts.

SELECT DUST EXHAUST SYSTEM AND ACCESSORIES

DUST EXHAUST SYSTEM

dust exhaust system, dust category „M” according to DIN EN 60335-2-69
N. 43.9070.00
Exhaust system, dust category "M" according to DIN EN 60335-2-69

The exhaust system, dust category "M" according to DIN EN 60335-2-69 for 230 V/1~, 50/60 Hz, 1600 Watt is versatile:


For combination with the high performance and small volume cyclones.
To operate the FRITSCH Cyclones you need an exhaust system. The strong airflow ensures simple feeding, increases throughput, and reduces the thermal load of the samples. The high performance and small volume Cyclone separator can be combined with Universal Cutting Mills PULVERISETTE 19, the Variable Speed Rotor Mill PULVERISETTE 14 premium line and classic line. The small volume cyclone can also be combined with the Variable Speed Rotor Mill PULVERISETE 14 premium line and classic line even for passive utilisation – without sample exhaust.
The high-performance cyclone is ideal for combination with the Universal Cutting Mills PULVERISETTE 19 large, the Cross Beater Mill PULVERISETTE 16 and the Disk Mill PULVERISETTE 13 premium line for optimal sample extraction and for comminution of larger quantities.


For cooling of the Variable Speed Rotor Mill PULVERISETTE 14 premium line
By connecting the exhaust system with the connecting piece order no. 14.4214.00, the cooling of the mill can easily be enhanced.


For connecting to Disk Mill PULVERISETTE 13 premium line
The exhaust is simply connected to the PULVERISETTE 13 premium line and operated via a start and stop button on the instrument – for dust free comminution.


For connecting to the Jaw Crusher PULVERISETTE 1, Modell I + II classic line
Simply connect the exhaust system to the integrated connection of the PULVERISETTE 1. Fine dust arising during comminution is automatically removed. The exhaust system is also very useful when cleaning the grinding parts.


For connecting to the Disk Mill PULVERISETTE 13 classic line
The exhaust system can be easily connected to the PULVERISETTE 13 classic line. Fine dust arising during comminution is automatically removed. The exhaust system is also very useful when cleaning the grinding parts.


For exhaustion of the sample during dry measurement with the Laser Particle Sizers ANALYSETTE 22 NeXT
An exhaust system is necessary to ensure automatic sample exhaustion during dry measurement. When the measurement is completed it can also be easily used to manually clean the feeder.


Please note that the exhaust system article no. 43.9070.00, is not equipped with a fine filter and therefore dust may escape. Please consider the valid occupational health and safety regulations. This exhaust system is mostly recommended for dust-free grinding and the vacuuming of during the process developing fine dust in the upper part of the grinding chamber and for the cleaning of the grinding parts.


For vacuuming of the sample during dry measurement with the Laser Particle Sizers ANALYSETTE 22 NeXT, we recommended we recommend the exhaust system article no. 43.9060.00, which is equipped with a hose and an ultra-fine filter of dust class "H" according to DIN EN 60335-2-69, so that the escape of fine dust is reduced.


fleece filter bag for exhaust system (pack = 5 pieces) for exhaust system 43.9070.00
N. 43.9055.00

1 pack = 5 pieces
One pack is included in the scope of delivery of the exhaust system (article No. 43.9070.00).
These fleece filter bags should be used for the vacuuming off of fine, dry materials.
For the vacuuming off of coarse, wet materials are plastic bags available (article no. 43.9052.00).


plastic bag for exhaust system (pack = 5 pieces) for exhaust system 43.9070.00
N. 43.9052.00

1 pack = 5 pieces

One pack is included in the order of the exhaust system (article No. 43.9070.00).
These plastic bags should be used for the vacuuming off of coarse, wet materials.
For the vacuuming off of fine, dry materials are paper filter bags available (article no. 43.9055.00).


Accessories for combination of Jaw Crusher and Disk Mill

Mounting rack for combined use of the Jaw Crusher PULVERISETTE 1 classic line with the Disk Mill PULVERISETTE 13 classic line.

SELECT ACCESSORIES

Accessories for combination

mounting rack for combined use of Jaw Crusher PULVERISETTE 1 with the Disk Mill PULVERISETTE 13
N. 43.5100.00
Mounting rack

For fine pre-crushing of sample material with a feed size of up to 95 mm down to 0.1 mm final fineness in a single process and for continuous operation with the Jaw Crushers PULVERISETTE 1 classic line.

Fine pre-crushing from up to 95 mm down to 01 mm in a single process
A mounting rack with chute in combination with the Jaw Crusher PULVERISETTE 1 classic line (Model I + II) and the Disk Mill PULVERISETTE 13 classic line make it possible to grind up to 95 mm feed material down to a final fineness of 100 µm in a single process.


Continuous operation
With the use of the mounting rack and delivery chute, the Jaw Crusher PULVERISETTE 1 classic line (Model I + II) can be used for continuous operation. Conversion kit for the continuous operation of the Disk Mill PULVERISETTE 13 classic line on request.


Select the appropriate grinding parts and the desired configuration from the options available from our accessory pages for the:


Jaw Crusher PULVERISETTE 1, Model I classic line


Jaw Crusher PULVERISETTE 1, Model II classic line


Disk Mill PULVERISETTE 13 classic line


CERTIFICATION

IQ/OQ documentation (questionnaire format - implementation not included); for the independent utilization for the support of instrument qualification in the quality management system for the Jaw Crushers PULVERISETTE 1 classic line, Model I and II.

SELECT CERTIFICATION

CERTIFICATION

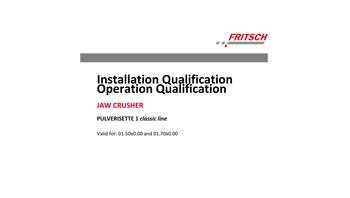

IQ/OQ documentation (questionnaire format - implementation by customer)
N. 96.0270.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Jaw Crushers PULVERISETTE 1 classic line, model I and II.


Numero di ordinazione
01.7030.00
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
Telefono +49 67 84 70 0

Database contenente i report di macinazione

PROVA ADESSO

PROVA DI MACINAZIONE INDIVIDUALE

Inviaci il tuo campione. Siamo a vostra disposizione per eseguire una macinazione e per consigliarvi il prodotto corretto per la vostra applicazione.
