Vibratory Feeder - with V-shaped channel

LABORETTE 24

Numero di ordinazione
24.0030.00



AT A GLANCE

  • For uniform feeding of free-flowing materials of laboratory instruments
  • Maintenance-free components
  • Simple regulation of sample flow with separate control unit
  • Suitable for coarse and fine materials

Ideal for

  • NARROW, DIRECTED SAMPLE DISCHARGE
  • Overview

    Reliable automatic feeding

    The Vibratory Feeder LABORETTE 24 is ideal for automatic, uniform feeding of free-flowing materials into sample dividers, mills or mixers in your laboratory. The vibration, which is controlled by a microprocessor, conveys the sample material out of the funnel over the V-shaped stainless steel channel into the respective equipment. The flow rate can be individually adjusted; the vibration amplitude is precisely controlled – for absolute uniform feed of even smallest quantities. Safe and reliable.
    The Vibratory Feeder LABORETTE with a V-shaped feeder channel made of stainless steel is ideal for a narrow directed material feed between 1 g/min and 1,500 g/min.

  • WORKING PRINCIPLE

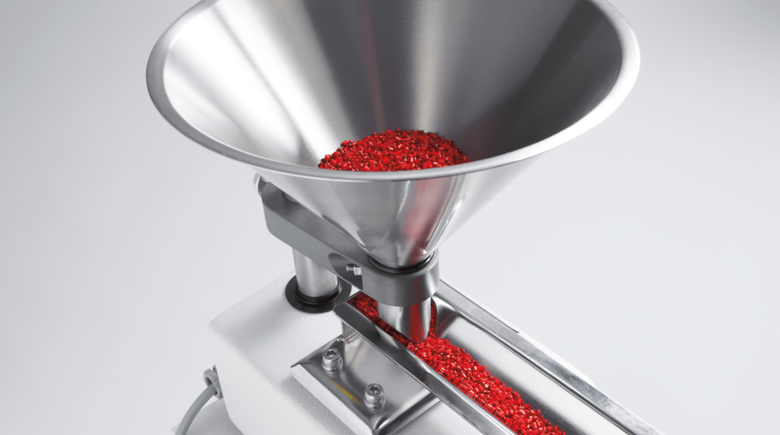

    Through vibration of a channel of stainless steel, free-flowing material is conveyed out of a funnel and to the open end of the channel in a uniform stream. The rate of flow can be controlled individually with a separate control device by modifying the vibration amplitude of the channel. Control of the vibration amplitude is performed by a microprocessor-controlled control unit with which even the smallest quantities of material can be conveyed with absolute uniformity.

  • FEATURES
    • As a standard, with polished stainless steel channel and funnel, PTFE-coating on request
    • Precisely controlled by microprocessor control with interface
    • Extensive choice of flow rates for smallest and largest quantities
    • Simple to clean due to easily removable components
    • Small footprint
    • Separate control unit for simple regulation of sample flow
    • Material bed height is variable, can be regulated by adjusting the funnel height according to the material
    • V-shaped and U-shaped channels easy to interchange
    • Maintenance-free electromagnetic drive and components
    • Recyclable, compact cast housing
    • Low energy consumption, only 0.1 kW drive power

    View accessories

  • EQUIPMENT / ACCESSORIES

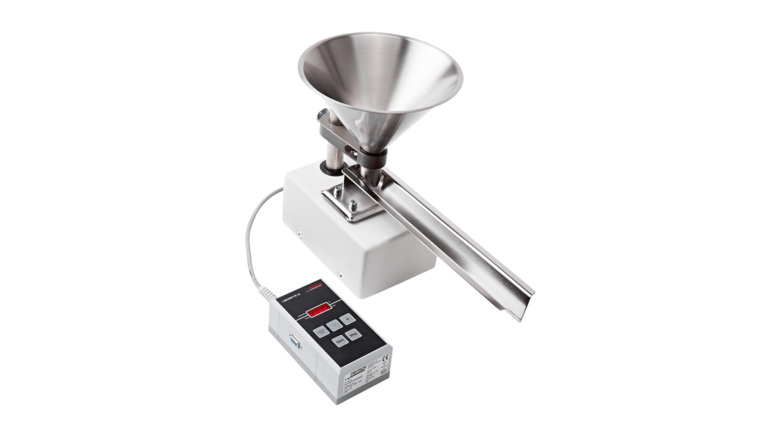

    The FRITSCH Vibratory Feeder with V-shaped channel is delivered with funnel and control unit.

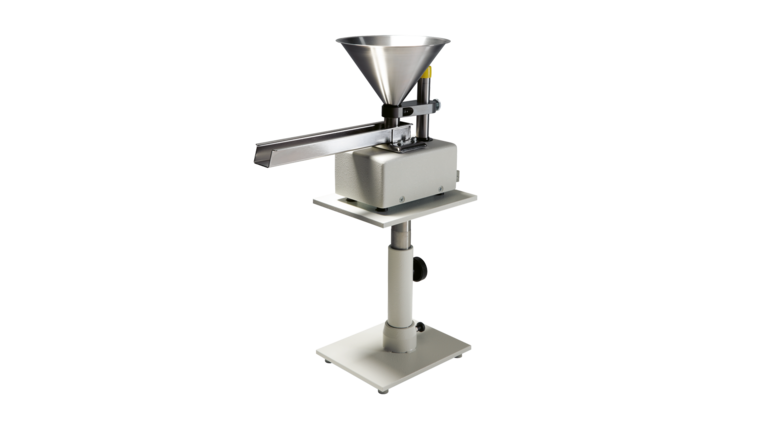

    Order your LABORETTE 24 with our practical stable, sturdy stand in which it is fitted slip-resistant – infinitely height-adjustable and rotatable and easily adaptable to any working situation.

    View accessories

    FRITSCH-TIPP

    The LABORETTE 24 is the perfect accessory for the combination with the FRITSCH Rotary Cone Sample Divider LABORETTE 27 and the FRITSCH Variable Speed Rotor Mill PULVERISETTE 14 premium line and classic line with automatic control of the channel vibration via the integrated interface – for perfect results and reliable reproducibility!

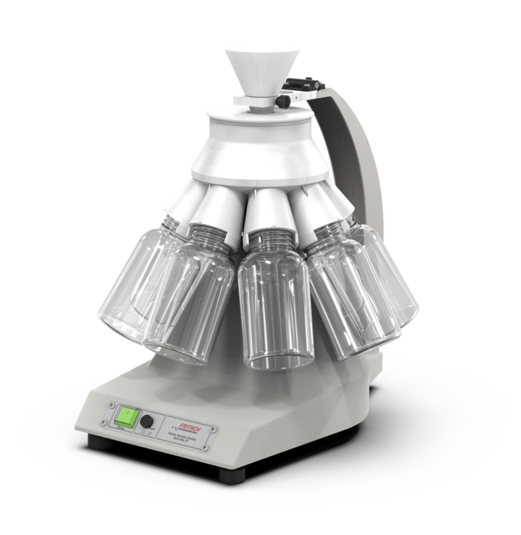

    Details Rotary Cone Sample Divider LABORETTE 27

    Details about the Variable Speed Rotor Mill PULVERISETTE 14 premium line

    Details about the Variable Speed Rotor Mill PULVERISETTE 14 classic line
