Mini-Mill

PULVERISETTE 23

Numero di ordinazione
23.1000.00



AT A GLANCE

  • For smallest sample amounts up to 5 ml for dry, wet and cryogenic grinding
  • Especially effective grinding due spherical grinding bowls
  • Precisely adjustable and reproducible grinding time
  • Very simple operation, cleaning and maintenance

IDEAL FOR

  • CHEMICAL ANALYSIS
  • ENVIRONMENTAL RESEARCH
  • PHARMACEUTICALS AND MEDICINE
  • FORENSIC ANALYSIS
  • BIOTECHNOLOGY
  • MATERIAL TECHNOLOGY
  • OVERVIEW

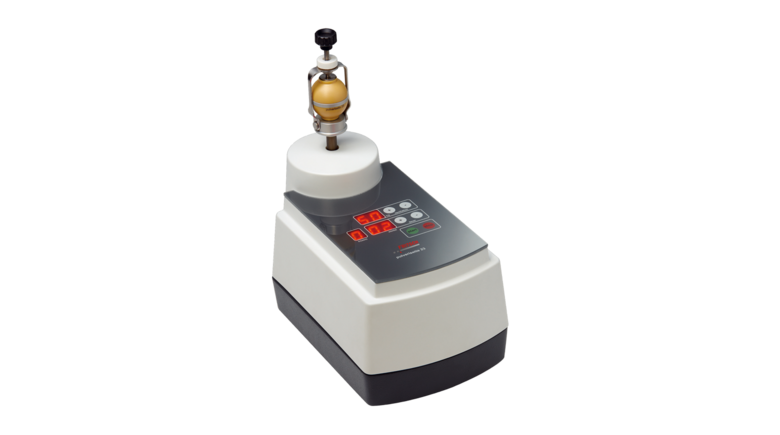

    The smallest instrument for smallest quantities

    The ultra-compact FRITSCH Mini-Mill is ideal for fine comminution of smallest quantities of medium-hard, brittle and moist samples – wet, dry or cryogenic. Its special spherical grinding bowl ensures a much better performance in grinding, mixing and homogenizing compared with similar models. With a footprint of just 20 x 30 cm and a weight of 7 kg it easily fits anywhere; it’s smart, user-friendly, inexpensive and convinces with impressive results, small, fast, effective.

  • WORKING PRINCIPLE

    Impact and friction

    The FRITSCH Mini-Mill PULVERISETTE 23 grinds the sample through impact and friction between grinding balls and the inside wall of the grinding bowl. For this, the grinding bowl performs vertically oscillating movements with 900 – 3,000 oscillations per minute at 9 mm amplitude.
    In contrast to similar mills, a clearly better degree of efficiency is achieved due to the spherical-shaped inside of the grinding bowl, which is perfectly adapted to the communition principle.

  • FEATURES
    • Fast, reproducible comminution
    • Extremely compelling in price and in performance
    • Convenient grinding bowl mount with plug-style closures practical and quick clamping system
    • Grinding bowl oscillations: 900 - 3,000 oscillations/min at 9 mm amplitude
    • Regulated oscillation frequency (15 – 50 Hz)
    • Small grinding bowl volumes for smallest sample quantities 0.1 ml – 5 ml
    • Low contact surface area with grinding elements

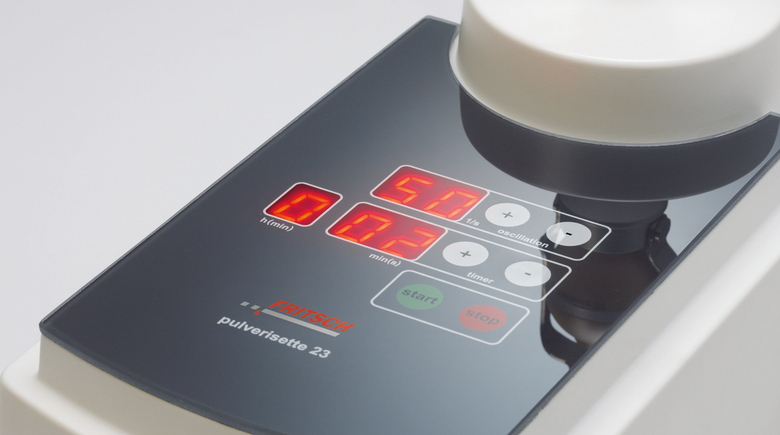

    • Operating panel with integrated, easy-to-clean glass keyboard
    • Extensive accessories for simplifying your daily work

    View extensive Accessories

  • EFFECTIVE GRINDING

    Unmatched effectiveness with spherical grinding bowls

    Available only from FRITSCH: In Special consideration of the ball mill grinding concept, we developed for the PULVERISETTE 23 a grinding bowl with interior walls that are spherical instead of cylindrical. Your advantage: Unmatched grinding performance with a significantly improved grinding effect, much easier recovery and simpler cleaning.
    Especially practical: The spherical grinding bowls of the PULVERISETTE 23 are assembled simply and quickly, just twist and turn!

  • BIOTECHNOLOGICAL APPLICATION

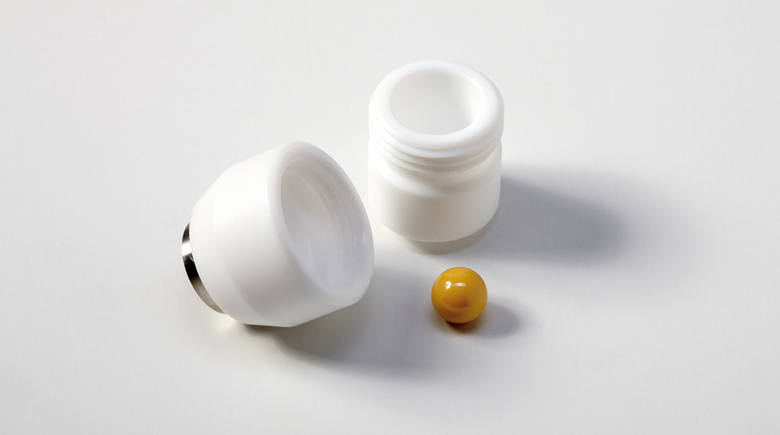

    PTFE bowl

    The 5 and 30 ml PTFE grinding bowls are especially suited for using the FRITSCH PULVERISETTE 23 in biotechnology applications. For example, it is possible to break up fungus or yeast cells, deep frozen tissue and cells in only a few minutes with this special plastic bowl and the corresponding grinding balls. It is also possible to pre-cool the entire bowl in liquid nitrogen.

  • EQUIPMENT / ACCESSORIES

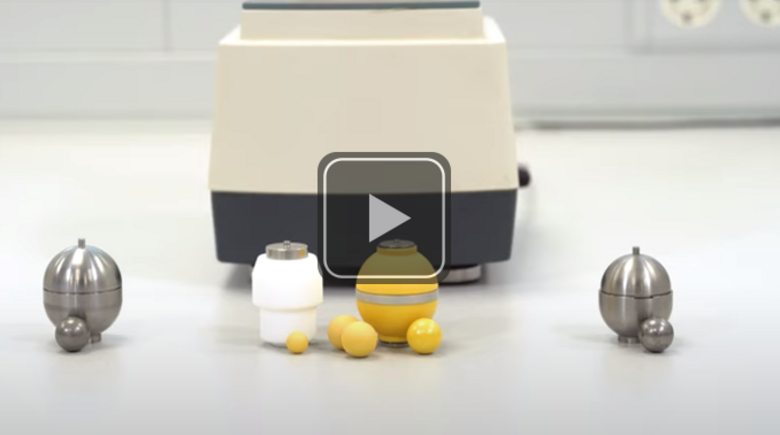

    Grinding bowl and grinding balls

    The Mini-Mill PULVERISETTE 23 operates with a grinding bowl and grinding balls. To avoid undesired contamination of the sample through abrasion, we offer a selection of 3 different materials. Normally, grinding bowls and grinding balls of the same material are used. Grinding bowls and grinding balls made of zirconium oxide for absolute metal-free grinding are also offered.

    View extensive accessories

Numero di ordinazione
23.1000.00
